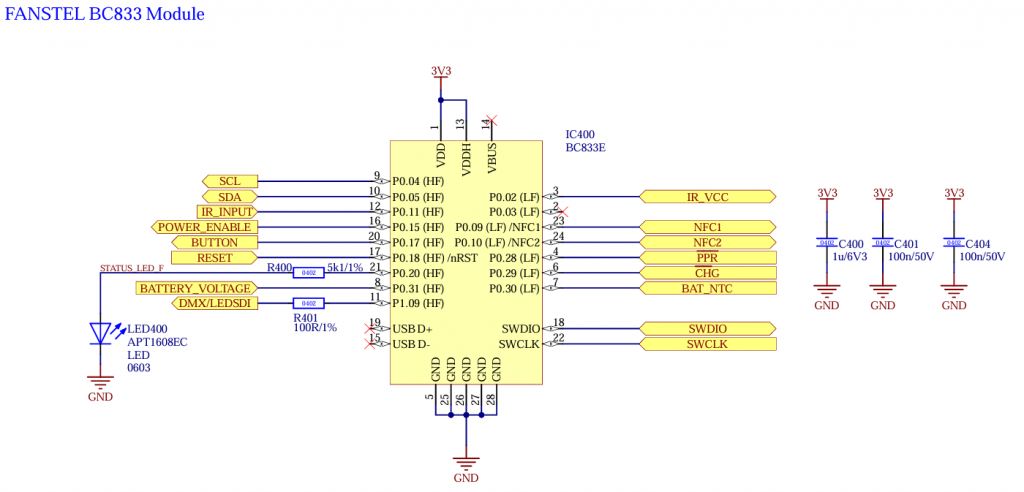

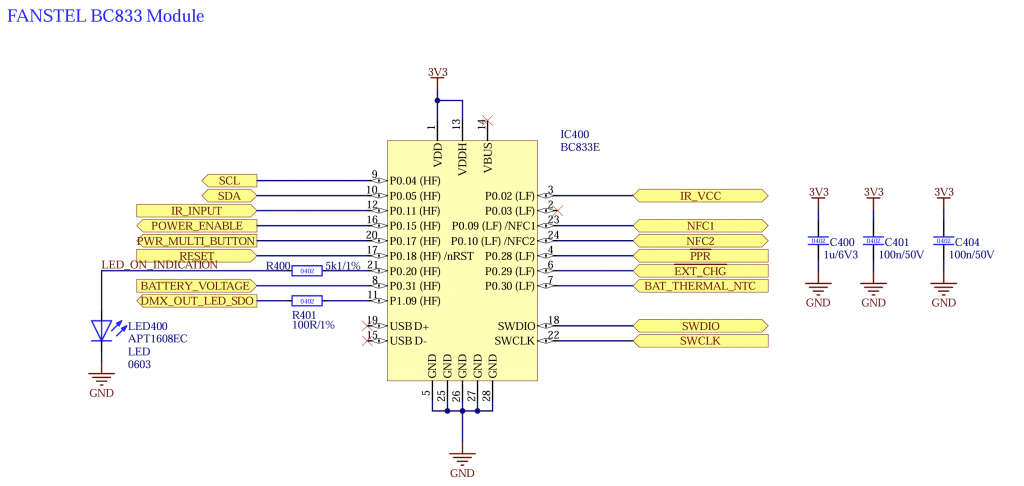

The following circuit shows a example implementation for the Fanstel BC833 Module. Each pin and its functionality is described in the table below.

Pin DescriptionMandatoryFunctionUseWiring
P0.04SCLNoI2C Clock for for peripherals like motion and battery controllerPull Up (4k7)
P0.05SDANoI2C Data for for peripherals like motion and battery controllerPull Up (4k7)
P0.11IR_INPUTNoIR Sensor Input for IR Remote
P0.15POWER_ENABLEYesTurn on and off power from components needed during normal operation like LED Driver, additional controller, Motor driver, etc..Needed to make sure the current consumption while sleeping is minimalPull Down (100k)
P0.17BUTTONYesTurn fixture on/off and unlink
P0.18RESETYesProgramming SWD
P0.20STATUS_LEDNoSignal Status LED
P0.31STATUSNoUART RX for receiving additional information like battery state, etc.. You can find additional information under STATUS Interface
P1.09DMX/LEDSDIYesDMX Stream / Different control protocoll depending on configuration
P0.02IR_VCCNoSwitchable supply voltage for IR Sensor (Needed for IR Remote)
P0.09NFC1NoNFC Antenna
P0.10NFC2NoNFC Antenna
P0.29CHGNoBattery Management: Charging indication InputLow: Charging
High: No charging
P0.28PPRNoBattery Management: Power PresenceLow: Power available
High: No power –> battery powered
P0.30BAT_NTCNoBattery Management: Battery NTCConnect NTC 10K using 10K resistor divider
SWDIOSWDIOYesSWD Programming Data
SWCLKSWCLKYesSWD Programming Clock

The following components should be used:

  • Fanstel BC833E or BC833M
